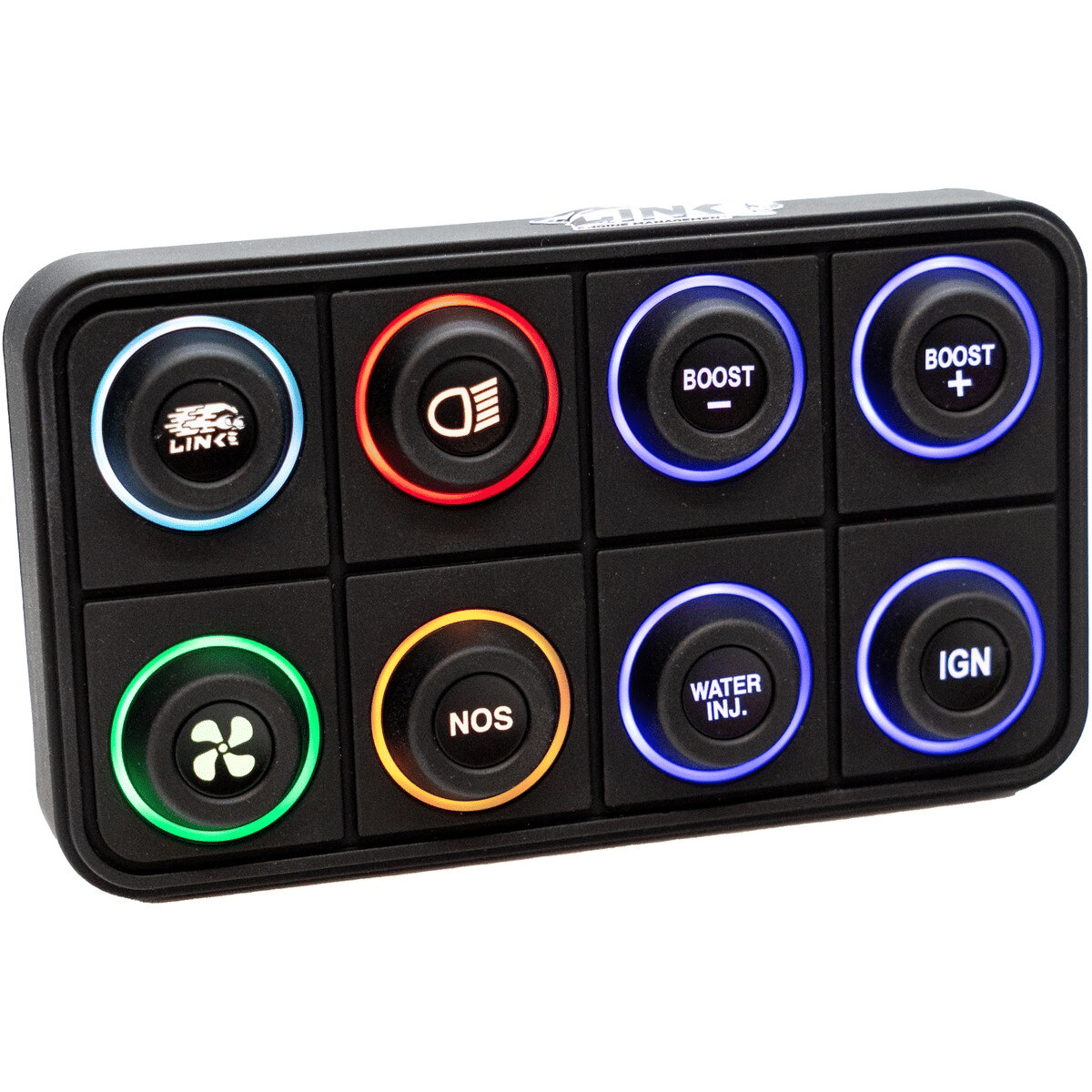

Link CAN Keypad 8 button

The Link CAN Keypad 8 button is a high-performance, rugged interface designed for demanding street, track, and off-road applications. Featuring 8 programmable keys with customizable RGB indicator rings, this keypad allows for precise control of vehicle systems, including lighting, ignition, and accessory management. It is engineered for extreme durability with an IP67/IP69K rating, ensuring resistance against water immersion and high-pressure sprays. The unit operates reliably in temperatures ranging from -40 to +70°C and supports a switch life of over 3 million operations. Compatible with all G4X ECUs, the keypad integrates seamlessly via the CAN bus, allowing for momentary, latched, or toggle configurations. For optimal engine performance and reliability, we recommend pairing your setup with a custom etune from Migtuned, available on their website for your specific vehicle year and model. Note that button inserts are sold separately, though a Link ECU logo insert is included in the box.

Connector
DTM4 Connector
Switch Life
3 million operations
CANopen Node ID
0x15 (21)
Default Baud Rate
1000kbit/s
Ingress Protection
IP67/IP69K
UV Protection
UVB 400 hours
Dimensions
4.86 x 2.76 inches
Mounting Stud Gap
3.07 inches
Thread Size
#10-32
Maximum Torque
0.8Nm
